eVolution 3e Advanced Ventilator

  •


    "The night the lights went out . . . to our amazement, the ventilators continued to ventilate our patients, uninterrupted."

    Florida


    Highlights

    The eVolution® 3e Advanced Ventilator is a new paradigm in ventilator design.  Dual PSOL valves ensure the precise flow, volume and pressure delivery for your sickest patients—true ICU ventilator care—while the innovative turbine design means you can deliver this ICU equivalent care wherever and whenever you need it.  The ventilator can receive O2 input from either a high or low pressure gas source, giving the eVolution precision and versatility throughout the continuum of ventilator care.

    A full suite of modes gives the clinician the flexibility to choose the mode that best suits the patient’s needs.

      eVent Medical | eVolutions® Ventilator
  •


    "The night the lights went out . . . to our amazement, the ventilators continued to ventilate our patients, uninterrupted."

    Florida


    Features
    • Comprehensive graphics
      and trending
    • High performance internal gas source technology
    • Dual valve technology for precise breath delivery
    • Pediatric through adult
    • Invasive and noninvasive
    • Transport ventilation support
    • Easy to use touch screen
      user interface


    A Clinician Focused Respiratory Product

  •


    "The night the lights went out . . . to our amazement, the ventilators continued to ventilate our patients, uninterrupted."

    Florida


    Gallery

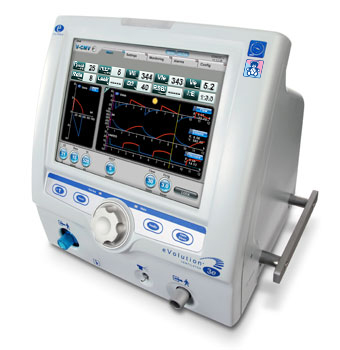

eVolution 3e Advanced Ventilator










Download
International Brochure

  eVent Medical | eVolution® Ventilator Brochure


Download
International Datasheet

  eVent Medical | eVolution® Ventilator Datasheet


Contact eVent Medical

Do you have questions about our product, would like to speak to one of our Customer Service Specialists or require additional literature?

Request Information



Get Product Support

Comprised mostly of respiratory therapists, our clinical and technical teams are available 24 hours a day, 7 days a week.

Get Support Now



Product Data Sheets



Product Specifications


Modes of Ventilation
  • Assisted Control Mandatory Ventilation (CMV)
  • Synchronized Intermittent Mandatory Ventilation (SIMV)
  • Spontaneous Ventilation (CPAP + PS, CPAP + VS, SPAP, NCPAP+)

Additional Features
  • Auto Control
  • Apnea Backup Ventilation
  • SPAP Philosophy Options: Time, Cycle + Time, Cycle + I:E
  • IBW Calculator
  • NIV On/Off in all Modes
  • Active Exhalation Valve
  • Automatic Leak Compensation (up to 60 lpm)
  • Work of Breathing Imposed
  • Maneuvers: PO.1 and PiMax

Breath Types
  • Volume-controlled


(V-CMV; V-SIMV)

  • Pressure-controlled


(P-CMV; P-SIMV, PS)

  • Volume Targeted Pressure-controlled


(PRVC-CMV; PRVC-SIMV, VS)

  • Dual Level PEEP


(SPAP)

  • Equivalent to APRV
    & BiLevel

Breath Triggering
  • Pressure triggering


-0.1 to (-20) cmH2O

  • Flow triggering


0.1 - 25 lpm


Additional Settings
  • Respiratory rate


1 - 150 bpm

  • Tidal volume


5 - 2000 ml

  • PEEP / CPAP


0 - 50 cmH2O

  • Pcontrol


1 - 100 cmH2O

  • Psupport


0 - 100 cmH2O

  • Peak flow (mandatory)


1 - 120 lpm

  • Peak flow (spontaneous)


Up to 180 lpm

  • Peak flow (Turbine Output)


Up to 300 l/min

  • I-Times


0.1 - 10.0 sec

  • Oxygen concentration


21 - 100%

  • Rise time settings


1 - 20

  • Exhalation sensitivity %
    (of spontaneous peak flow)


1 - 80%

  • Base Flow (with leak comp off)


2.5 - 25 lpm

  • Plateau (insp pause)


0 - 2.0 sec

  • PS Tmax


0.15 - 5.0 sec


User Configurable Graphic User Interface (GUI) and Functions
  • Multiple Easy View Tabs
    (Main, Settings, Monitoring, Alarms, Configuration)




  • Graphics Display (2-Loops and 3-Waveforms)




  • Apnea Back-up
    • User-selected breath type and settings




  • Smart Nebulizer™
    • User-selected nebulization running time and interval
    • Volume compensation
    • FiO2 compensated**




  • Smart Sigh™
    • User-defined volume- or pressure-controlled sighs
    • User-defined frequency and multiples of sighs
    • +0 -50% of tidal volume or pressure setting




  • Humidification Selection (HME, Humidifier, and None)





User Initiated Functions
  • Manual inspiration
  • Alarm silence
  • 100% Oxygen (+20% Oxygen (Neonate))
  • Inspiratory and expiratory breath holds
  • Standby

Monitored / Displayed Data
  • Delivered oxygen concentrations: 21 - 100%




  • Trend Data (1-72 hrs.) (24 trend parameters)




  • Monitoring Data (32 monitored parameters):

Basic



Advanced



Mechanics

  • Ppeak

  • PF

  • Cstat
  • PEEP

  • PFe

  • Rinsp
  • Pmean

  • FiO2

  • Rexp
  • Pplateau

  • H:L

  • Auto PEEP
  • Vte

  • Leak rate

  • RSBI
  • Vti

  • Ti / Ttot

  • Pplateau
  • Exp Min Vol (Ve)

  • I:E

  • WOBimp
  • Spont Min Vol (Ve Spont)

  • Spont % 1h

  • RCe
  • Vte Spont

  • Spont % 8h

  • PO.1
  • Rate Spont

  • PiMax
  • Respiratory rate

  • PO.1 / PiMax
  • Ti

  • Te


Real Time Graphics

  • Volume + time

  • Flow Volume loop
  • Flow + time

  • Pressure Volume loop
  • Pressure + time


Prioritized Alarms (High, Medium and Low)
  • Auto set alarm feature & 1000 Event log

Communication Interfaces
  • Ethernet and Nurse call

Physical Data
  • AC power: 100 - 240 VAC (50/60Hz)
  • Standard Internal Battery (Lithium-Ion* & Lead Acid**)
  • Battery backup > 120min
  • Gas supply pressure, 2 to 6 Bar
  • Screen: LCD 12.1” / Touch Screen

Optional Remote Viewing System
  • CliniNet® Virtual Report™ Software

Optional High Performance Internal Gas Source Technology
  • Integrated high performance turbine technology*
  • Low Flow O2, 0.3 to 2 Bar*

Ordering Information
  • Model EVL100500-HP-A, High Pressure System
  • Model EVL100500-T-A, Internal Turbine System
  • Model EVL100500-HP-A-NF, High Pressure System without Exhalation Filter
  • Model EVL100500-T-A-NF, Internal Turbine System without Exhalation Filter


* Only available on turbine models

** Only available on high pressure models

Specifications subject to change.
